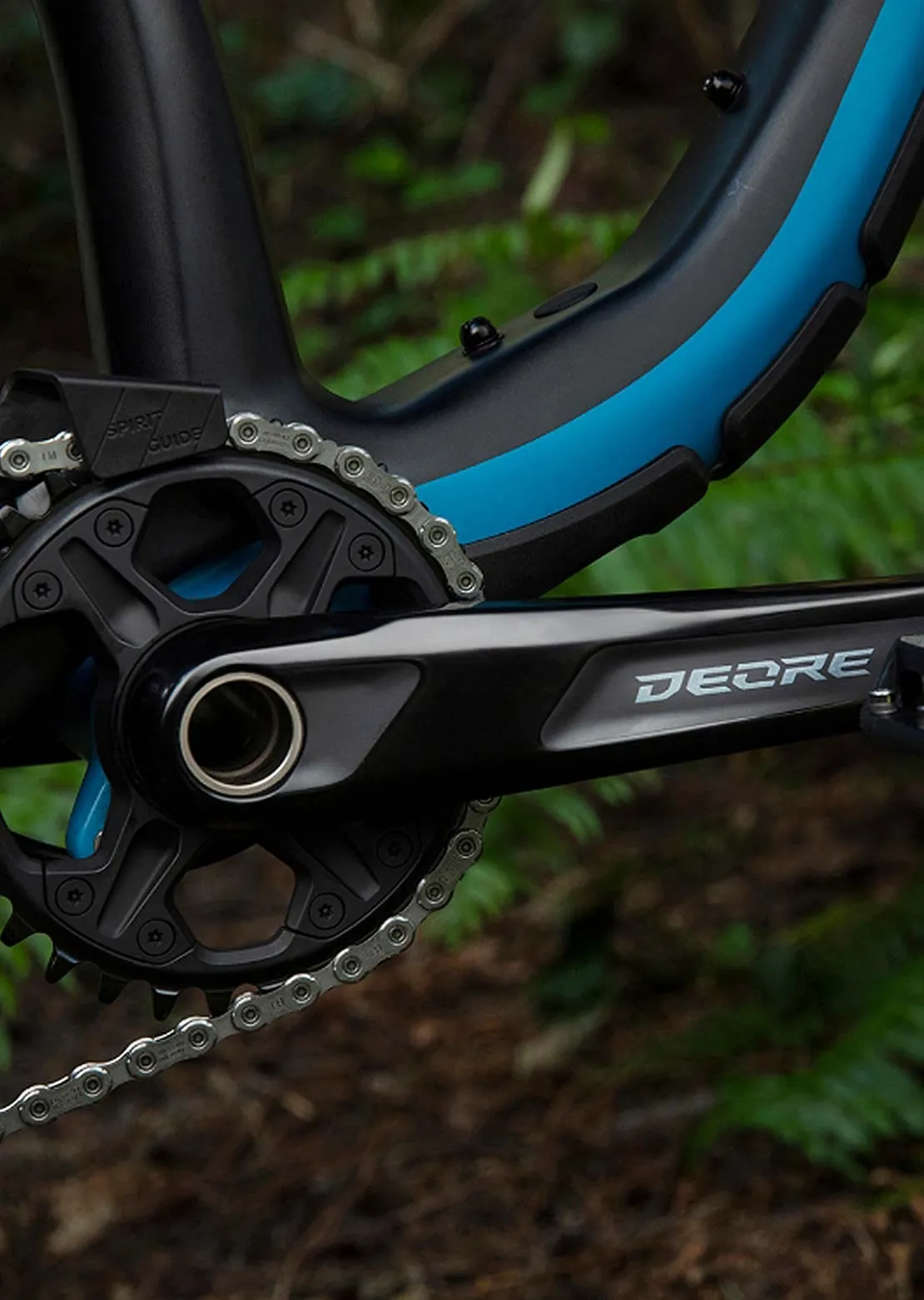

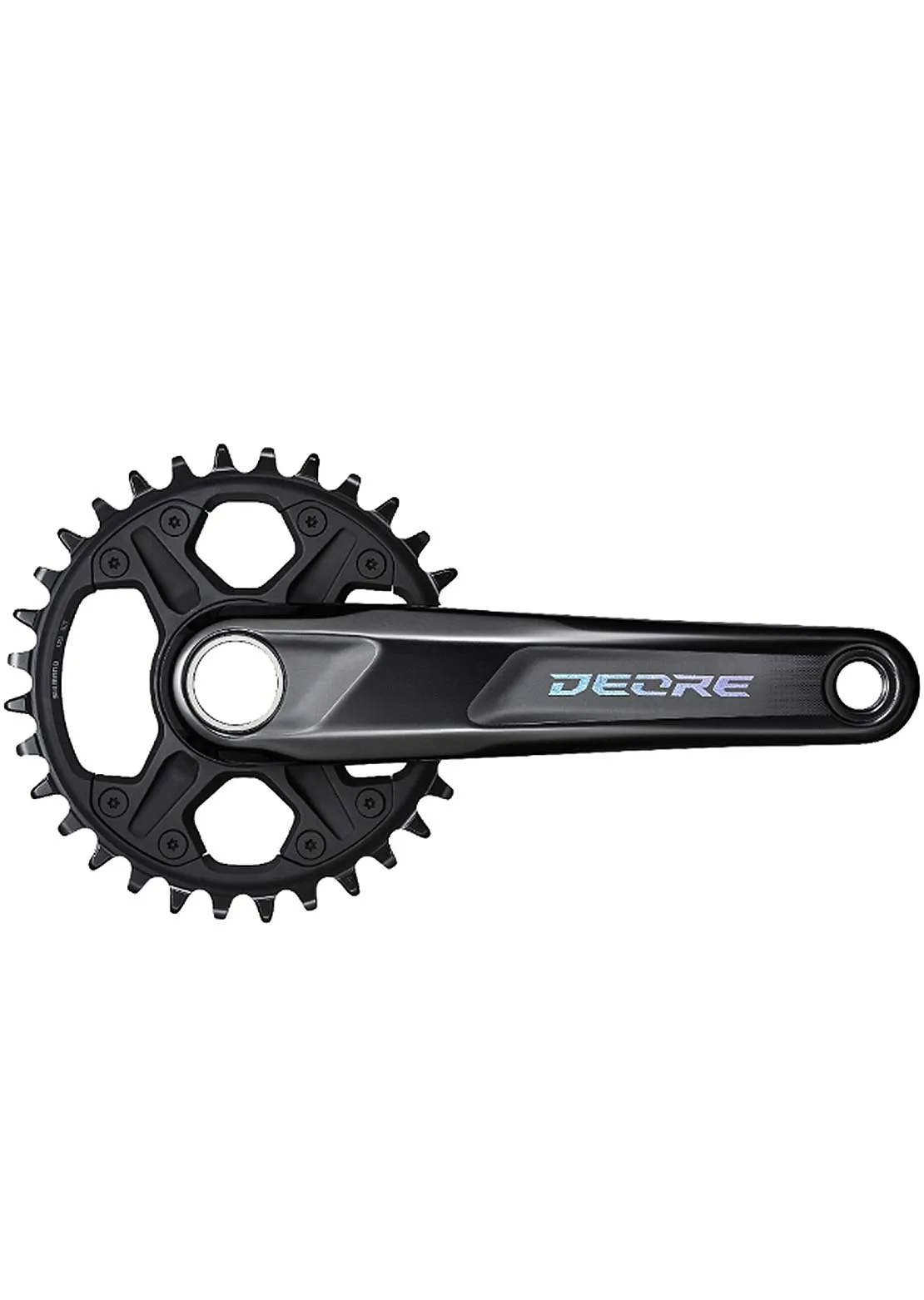

The SHIMANO DEORE FC-M6100-1 crankset combines innovative design with performance for serious cyclists. Featuring DYNAMIC CHAIN ENGAGEMENT+ technology, it ensures superior chain retention and smoother pedaling across rugged terrains. With a direct mount chainring and an efficient 2-piece construction, this crankset enhances rigidity while reducing weight. Ideal for XC, enduro, and trail riding, it offers a maintenance-friendly solution for enhancing acceleration and gear engagement, making every ride a seamless experience.
From the brand: SHIMANO DEORE - 2-PIECE CRANKSET - Chain Line 52 mm - 1x12-speed. The SHIMANO DEORE FC-M6100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172 mm Q-factor that is compatible with 142 mm or 148 mm O.L.D. frames.
F
DYNAMIC CHAIN ENGAGEMENT+
SPECIAL GEAR TEETH FUNCTION. SHIMANO’s DYNAMIC CHAIN ENGAGEMENT+ is a special gear teeth profile designed for use in single-chainring configurations for XC, enduro, and trail riding. It gives more chain retention and smoother pedaling - even over bumpy terrain. Chain retention of any gear will reduce abrasion and worn out.
2-piece crank set
Integrated crank arm and bottom bracket. Increased rigidity with less weight. Wider bearing positioning. Rigidity is enhanced and pedaling force is efficiently transmitted. Precision Bearings. Low maintenance and simplified installation.
HG CHAIN DESIGN FOR HYPERGLIDE+
HYPERGLIDE+ dedicated chain delivers greater chain retention, improved shifting efficiency, and smoother transmission over rough terrain. Improved chain retention encourages more aggressive all-terrain riding and relieves chain-issue anxiety. Smoother drivetrain transmission and enhanced shifting performance sharpens riders’ concentration and improves acceleration. Better chain engagement cuts abrasion, reduces maintenance, and lengthens the lifespan of the chain.
More:
Superior chain retention for smoother riding even over rough terrain
DYNAMIC CHAIN ENGAGEMENT+ improves chain engagement and retention
Direct mount chainring
S
MODEL NO
FC-M6100-1
SERIES
DEORE M6100 Series
Color
Series color
Rear speeds
12
Compatible chain
HG 12-speed
Chain line (mm)
52
O.L.D.|Thru (mm)
142, 148
O.L.D.|QR/Nut (mm)
135, 141
P.C.D. (mm)
Direct
Spider/gear arms
4
Chainring combination
30T, 32T
Q-factor (mm)
172
Crank arm length (mm)|165
✔
Crank arm length (mm)|170
✔
Crank arm length (mm)|175
✔
Optional chain guard|Without chain/bash guard
✔
2-PIECE CRANKSET
✔
Compatible bottom bracket type|Outboard
✔
Recommended bottom bracket|Threaded (normal)
BB-MT501
Recommended bottom bracket|Press-Fit
BB-MT500-PA
Threaded bottom bracket shell width (mm)|68
✔
Threaded bottom bracket shell width (mm)|73
✔
Crank fixing screw included
✔
