Transform a GBA with the Hispeedido display, offering a sleek, modern makeover. This IPS LCD boasts a 720x480 resolution, ensuring crisp visuals, while its wide viewing angle enhances the gaming experience. With vibrant color modes, adjustable brightness, and retro pixel effects, customization is at the user's fingertips. Built for easy installation and compatibility with various GBA models, this display is perfect for retro gaming enthusiasts looking to elevate their handheld experience.
From the brand: Give a modern look to your GBA with this new Hispeedido display!
Please read the product description carefully and in its entirety before purchasing.
Features
Easy to install!
Pre-Laminated Glass Screen
Drop-in ready/compatible only with Hispeedido Laminated Shells.
720x480 Display resolution (HD LCD, 9 pixels to 1 pixel, Integer Scaling, No distortions)
Wide View angle (up to 178 degree)
PCB embedded in the LCD metal shell
Built-in OSD Menu (only one solder required if wanted)
Retro pixel effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2
15 brightness levels

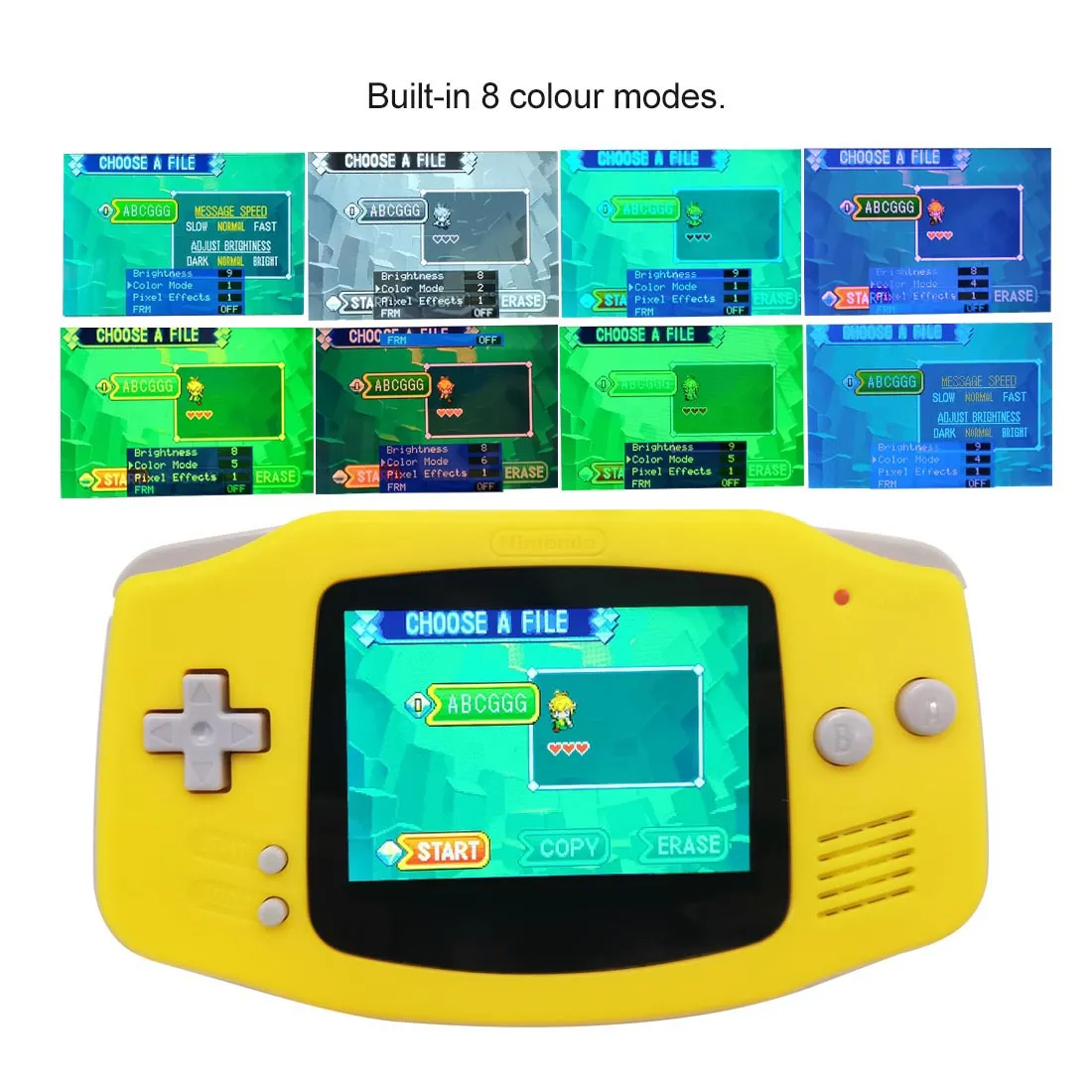

8 colors modes
Frame blending function (OSD Menu only)
Touch Screen to change the brightness and the colors modes
Compatible with 32-pin and 40-pin GBA Console
Included
1x IPS LCD with adhered lens, integrated PCB, with two pre-soldered touch sensor wires
1x 40 pin ribbon
1x 32 pin ribbon
3x Red wires
Documentation
OSD Menu Operation:
Activate the OSD Menu by pressing the
Select + L + R
buttons at the same time, for 1 second, then release;
Press the
Select
button when the OSD Menu is activated,
to select the adjustment item;
Then press the
L
or
R
button to adjust the selected item's value;
Notes
We recommend using Hispeedido's dedicated shell for this kit as all non-laminated shells may require heavy trimming in order to be compatible.
Not compatible with FunnyPlaying laminated shells or other laminated shells.
In rare cases, the image will be better when FRM setting is turned on, for most games, FRM is not required.
Warning
We strongly recommend testing the display before installing it in your console.
Please follow our
Display
Testing
Guide
to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or
any non-critical soldering
to the ribbon or driver PCB.
We are unable to accept returns or replacements on kits that have been installed in a console.
Individual replacement parts may be available in the "Included" section above.
The ribbon is very fragile, be sure to handle it carefully to avoid damage.
Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty.
