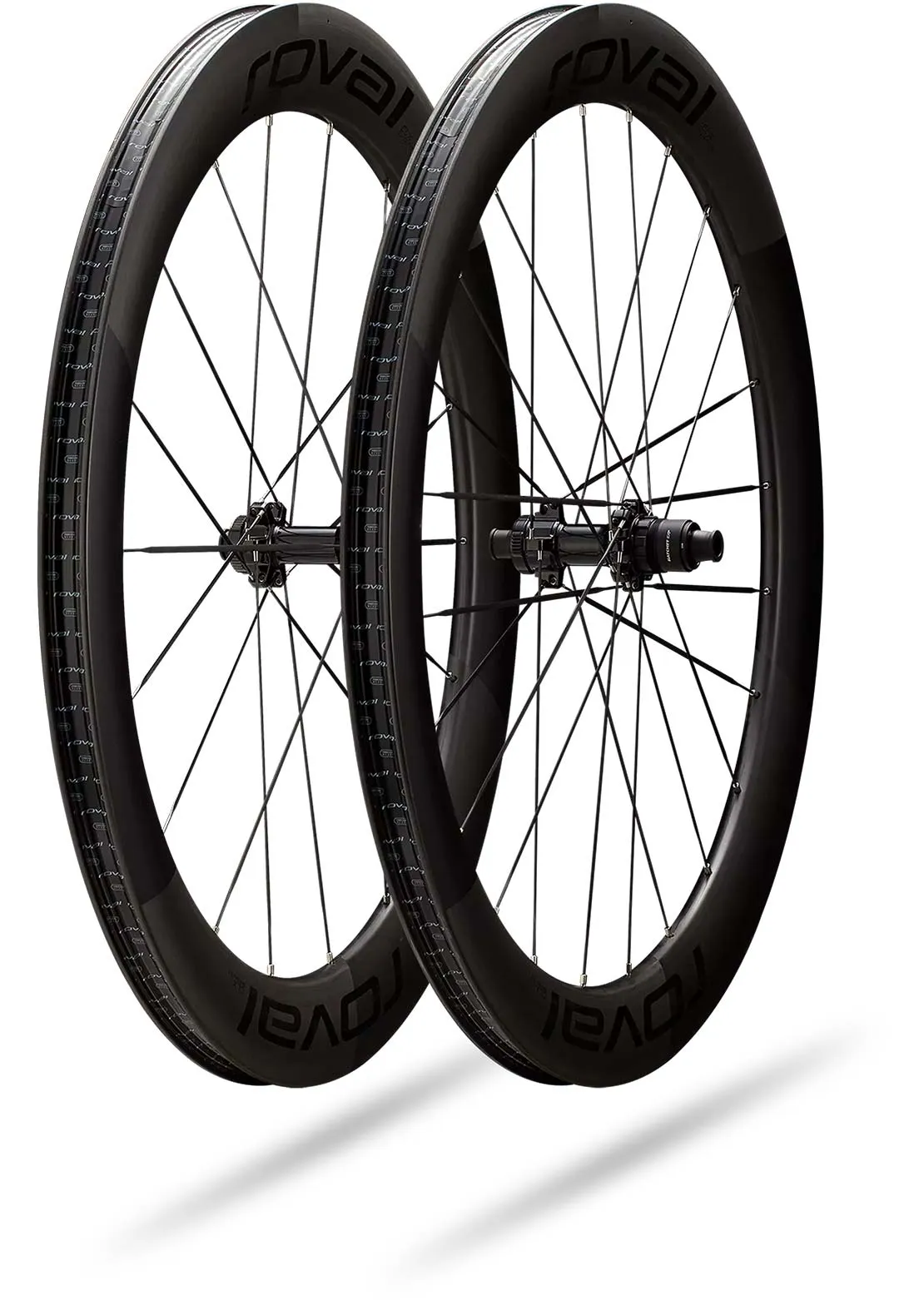

Experience exceptional performance with the Roval Rapide CLX Sprint wheels, designed for speed and reliability. With a 63mm deep front rim and a lightweight 58mm rear, these wheels minimize drag while maximizing acceleration. Incorporating innovative FlatStop bead hooks, they offer unprecedented resistance to flats. Whether racing or riding, these wheels redefine aerodynamic standards and elevate the cycling experience with their robust construction and advanced materials. Perfect for serious cyclists looking to enhance their competitive edge.
From the brand: Meet the Roval Rapide CLX Sprint—built to get to the finish line first. Since 90% of aero benefit comes from the front wheel, we went all-in with a 63mm deep front rim to slice through the wind, and a lightweight 58mm rear with carbon spokes for blistering acceleration when it counts.
Charge full gas with confidence: FlatStop bead hooks demand 39% more force to flat, delivering race-day reliability that lasts to the line. Roval is shifting the aero paradigm—depth redefined for absolute speed.
F
From Photo Finish to Clear Victory
A deeper front and shallower rear rim defies aero norms, putting you 18cm ahead in the last 250m.
Less Mass, More Muscle
Composite spokes with titanium fittings are 2.3g lighter, 63% stronger, saving a total of 96.6g.
39% More Force to Flat
FlatStop bead hooks—widest on the market—disperse impact and need 39% more force to flat.
S
Rims

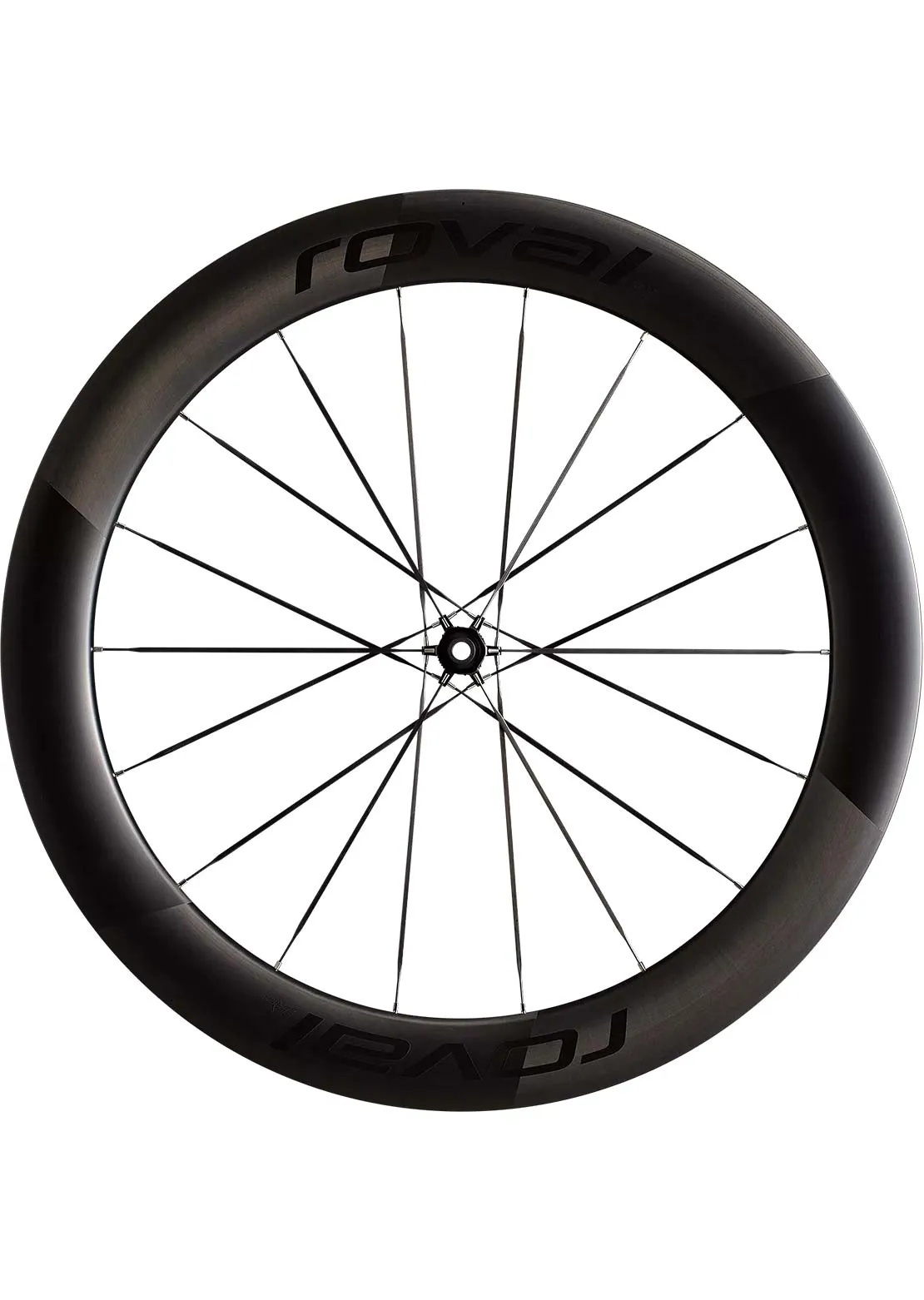

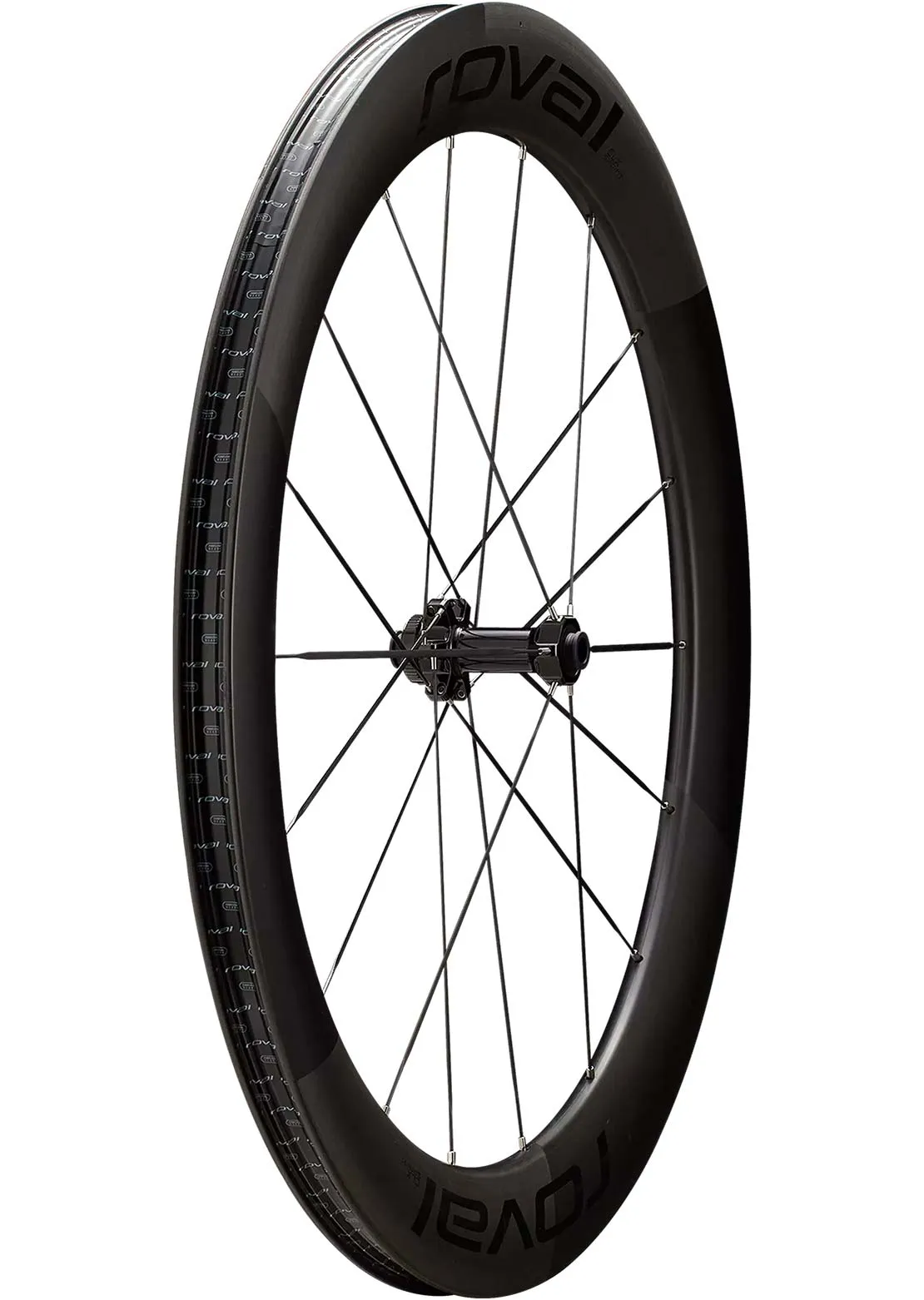

Front Rim: Rapide Sprint CLX Carbon Clincher Front, 700c (CR2374)
Front Rim Dimensions: Depth: 63mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (4.3)mm
Rear Rim: Rapide Sprint CLX Carbon Clincher Rear, 700c (CR2375)
Rear Rim Dimensions: Depth: 58mm, External Width (at widest point): 34.4mm, Internal Width: 21mm, Bead Hook Width: (4.2)mm
Rim Construction: Carbon Clincher Hooked
Wheel Size / ETRTO: 622 × 21 (700c)
Hole Count: Front: 18H, Rear: 24H
Tubeless Compatibility: Yes
Insert Compatibility: Yes
Brake Compatibility: Disc (Centerlock)
Valve Stem Length: Roval Tubeless Vlave, Alloy 80mm
Hubs

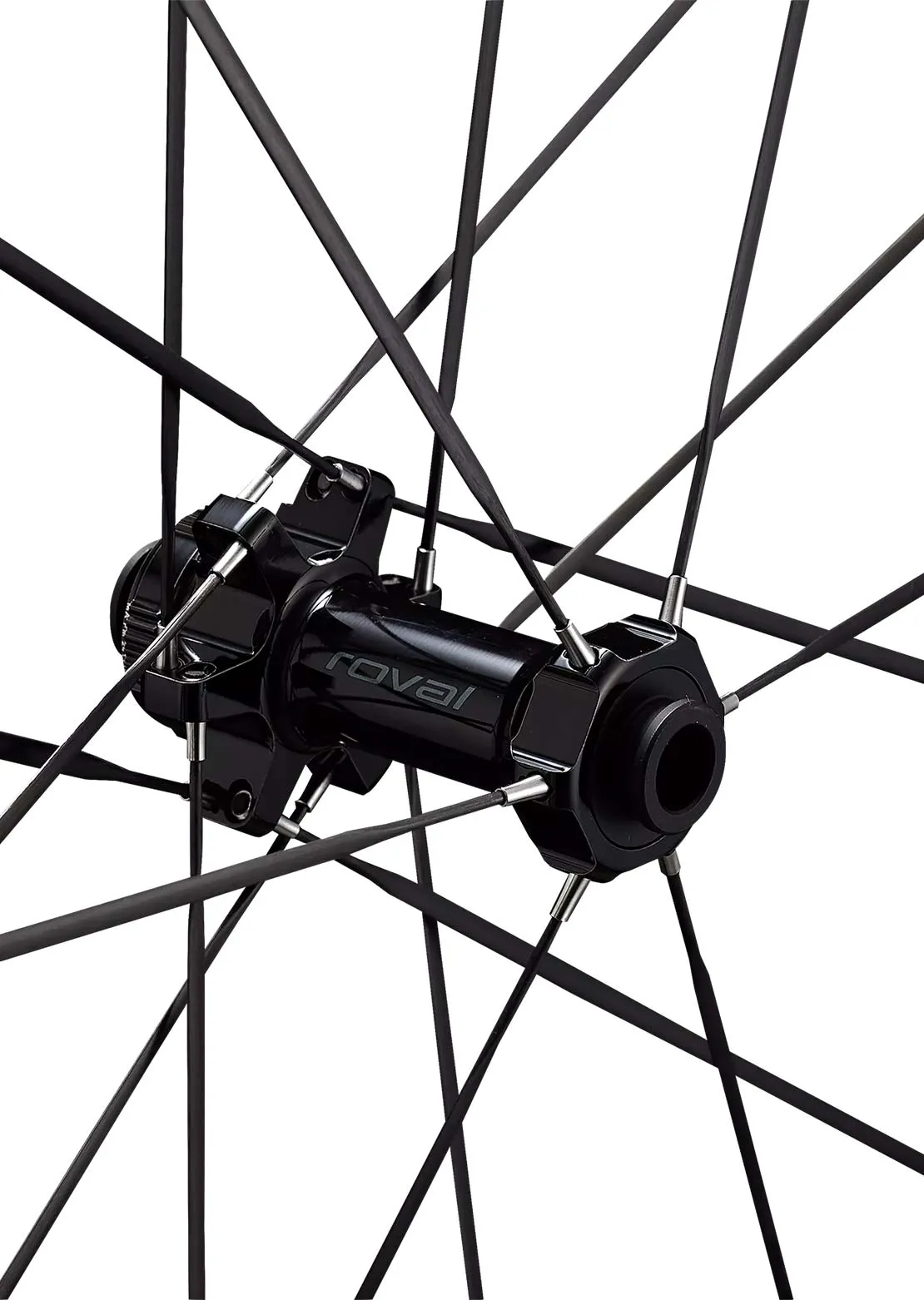

Front Hub: Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
Rear Hub: Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
Front Hub Bearing: DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Rear Hub Bearing: DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)
Rear Freehub Body: DT Swiss Ratchet EXP (36T ): Sram XD-R
Spokes & Nipples
Front Spokes: Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 251mm, NDS: 261mm)
Rear Spokes: Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 267mm, NDS: 263mm)
Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked
Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
Nipples: Arris MK4 Spoke Nipple Alloy, 6 mm
Tire Info
Approved Tire Widths : 24mm-38mm
Max Pressure: Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
Tire Type: Clincher Tubeless and Clincher Tube Type
Tubeless Tape Width: 25mm
Design Tire: RapidAir TLR, 28mm
Weight
Front Weight: 640g (with valves and tape)
Rear Weight: 755g (with valves and tape)
Wheelset Weight: 1395g (with valves and tape)
General
Extras: 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub (Steel Bearings) & end Caps (rear wheel only)
E-bike Approved: No
Certifications: ISO 5775-2, UCI Approved
Weight Limit: 275 lbs. / 125 kg.
Assembly Method: Hand Built
